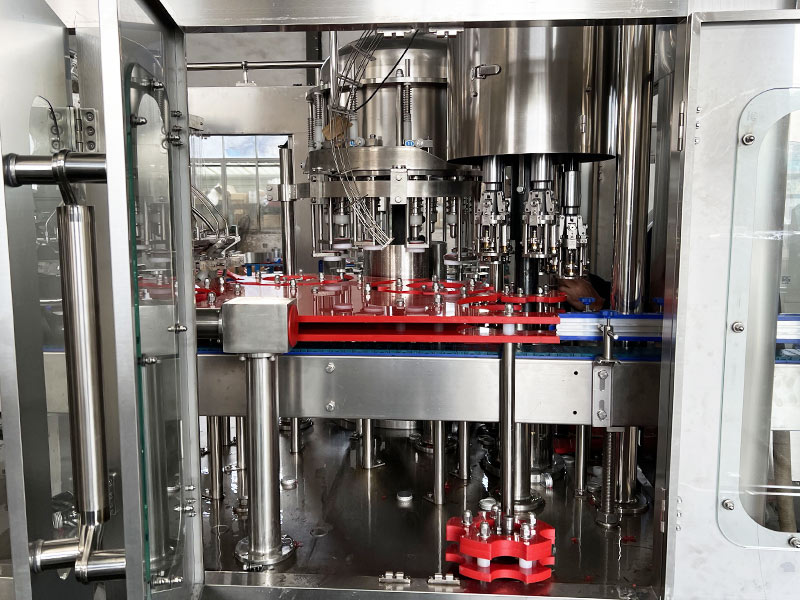

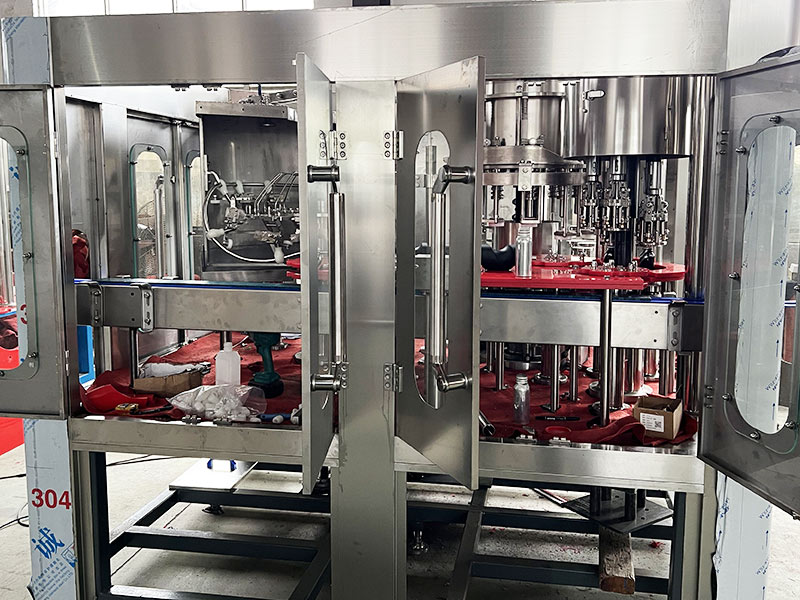

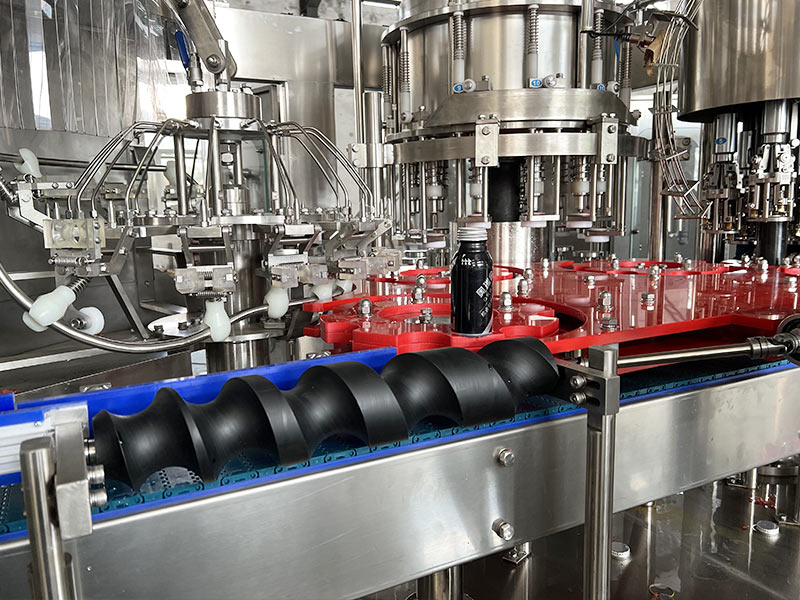

This is a machine specifically designed for filling aluminum-plated fruit juice beverages, featuring a total of 12 filling heads.
It is primarily used for filling aluminum-plated mango juice, orange juice, apple juice, strawberry juice, and other fruit juices. It offers moderate filling speed and high precision, making it particularly suitable for small to medium-sized fruit juice beverage factories. The machine has a compact structure, is easy to operate, and convenient to maintain.
High Filling Accuracy
Advanced filling control system ensures stable liquid flow and consistent filling levels, minimizing product waste and improving overall quality.
Efficient 12-Head Design
The optimized 12-head configuration provides balanced output and stable performance, ideal for medium-capacity production lines.
Hygienic & Food-Grade Structure
All contact parts are made of high-quality stainless steel, ensuring compliance with food safety standards and easy cleaning.
Stable & User-Friendly Operation
Equipped with an intelligent control system, the machine offers smooth operation, low failure rate, and easy daily maintenance.
| Model | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
|---|---|---|---|---|---|---|
| Capacity (BPH) | 3000-4000 | 6000-9000 | 10000-12000 | 15000-18000 | 18000-20000 | 22000-24000 |
| Bottle Type | Aluminum Round or Square Bottles | |||||
| Bottle Diameter (mm) | 50-90 | |||||
| Bottle Height (mm) | 150-310 | |||||
| Air Pressure (MPa) | 0.3-0.7 | |||||
| Rinsing Medium | Sterile Water | |||||
| Rinsing Pressure (MPa) | 0.25 | |||||
| Total Power (kW) | 3.0 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| Dimensions (mm) | 2100×1700×2250 | 2600×1830×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 | 4500×3300×2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 | 9000 |
| No. | Component | Brand |
|---|---|---|
| 1 | Main Motor | ABB |
| 2 | Cap Sorter Motor | ABB |
| 3 | Conveyor Motor | ABB |
| 4 | Rinsing Pump | CNP |
| 5 | Solenoid Valve | FESTO |
| 6 | Cylinder | FESTO |
| 7 | Air Treatment Unit | FESTO |
| 8 | Pressure Regulator | FESTO |
| 9 | Inverter | Siemens |
| 10 | Power Supply | OMRON |
| 11 | Contactor | OMRON |
| 12 | Relay | OMRON |
| 13 | Photoelectric Sensor | Autonics |
| 14 | Proximity Switch | Autonics |
| 15 | PLC | Siemens |
| 16 | Touch Screen | WEINVIEW |
| 17 | Pneumatic Components | FESTO |
| 18 | AC Contactor | OMRON |
| 19 | Mini Relay | OMRON |

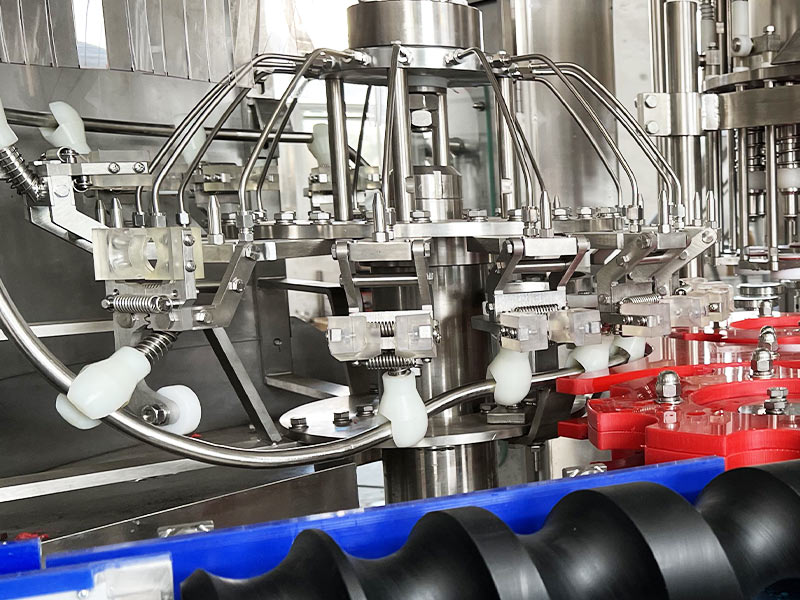

High-pressure rotary internal and external washing system thoroughly cleans the bottles to remove dust, residues, and microorganisms, ensuring perfect cleanliness before filling.
● Multi-angle high-pressure spray nozzles
● Rotary washing technology for complete internal cleaning
● Optional hot alkaline + pure water double rinsing

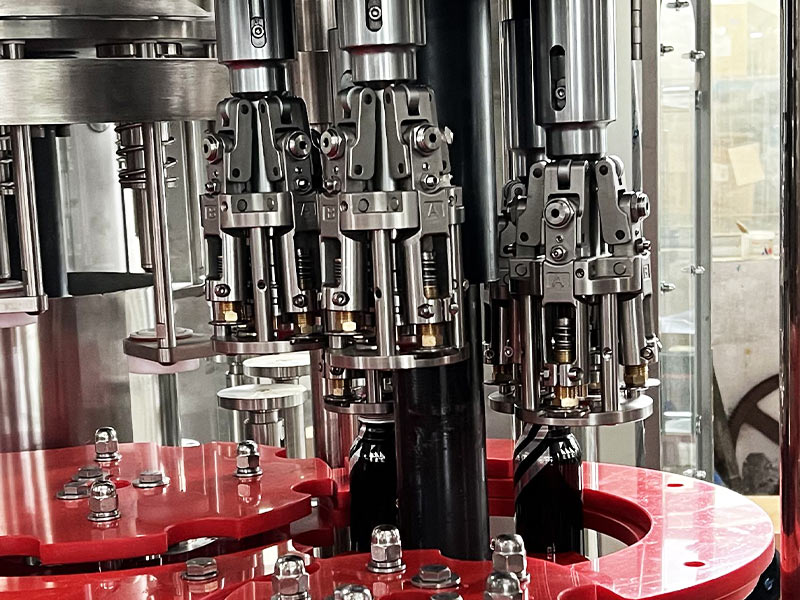

The machine uses gravity filling technology to fill liquid into bottles under atmospheric pressure, ensuring gentle, stable, and precise filling with minimal foam and oxidation.
● High-precision gravity filling valves
● Adjustable filling speed and flow rate
● Anti-foam and anti-drip design

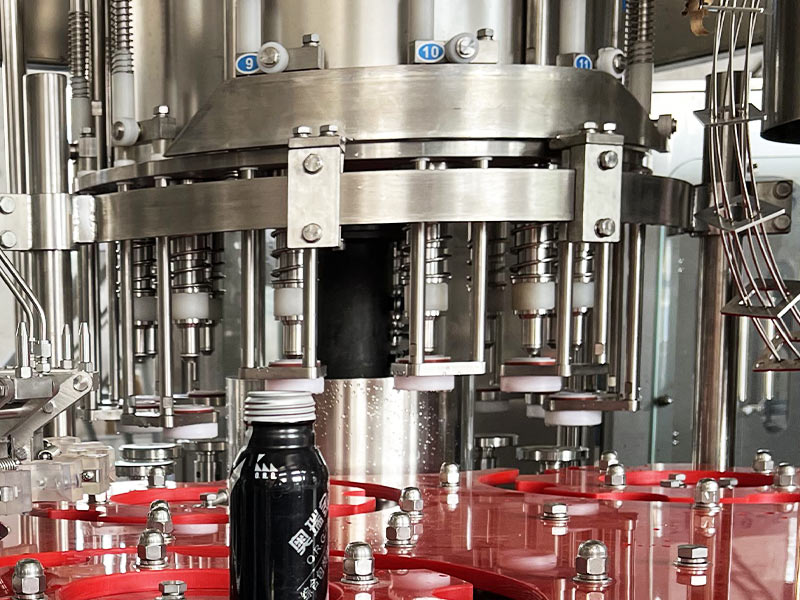

Automatic high-speed capping system securely applies and tightens caps on the filled
bottles with precise torque control.
● High-precision automatic capping heads
● Adjustable capping torque for perfect seal
● Gentle bottle handling system to reduce breakage risk
