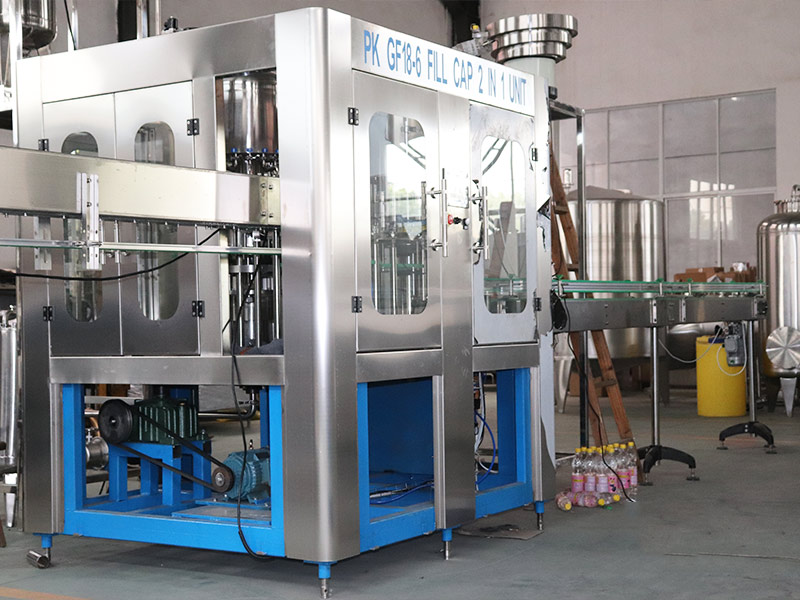

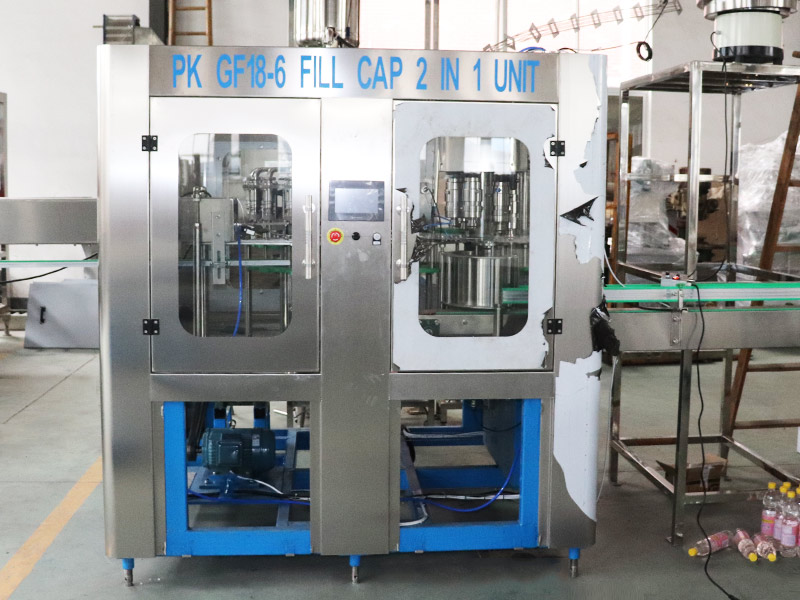

This machine combines filling and capping functions and is specifically designed for the production of fruit juice beverages in PET plastic bottles.
It is particularly suitable for filling PET bottles with various fruit juice beverages such as mango juice, strawberry juice, blueberry juice, apple juice, and orange juice. The machine has a compact structure, completing both filling and capping processes in one operation, significantly saving space and labor. It is very easy to operate and is a practical choice for small and medium-sized fruit juice beverage factories.
Two-in-one integrated design
Bottle filling and capping are completed in one step, saving space and manpower.
High-precision filling
Gravity-driven atmospheric pressure filling ensures precise level control with minimal error.
Optimized for pet bottles
Soft-grip bottle technology minimizes bottle breakage.
Hygiene and safety
Made entirely of 304/316L stainless steel, meeting food hygiene standards.
| Model | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
|---|---|---|---|---|---|---|
| Capacity (BPH) | 3000-4000 | 6000-9000 | 10000-12000 | 15000-18000 | 18000-20000 | 22000-24000 |
| Bottle Type | PET Round or Square Bottles | |||||
| Bottle Diameter (mm) | 50-90 | |||||
| Bottle Height (mm) | 150-310 | |||||
| Air Pressure (MPa) | 0.3-0.7 | |||||
| Rinsing Medium | Sterile Water | |||||
| Rinsing Pressure (MPa) | 0.25 | |||||
| Total Power (kW) | 3.0 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| Dimensions (mm) | 2100×1700×2250 | 2600×1830×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 | 4500×3300×2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 | 9000 |
| No. | Component | Brand |
|---|---|---|
| 1 | Main Motor | ABB |
| 2 | Cap Sorter Motor | ABB |
| 3 | Conveyor Motor | ABB |
| 4 | Rinsing Pump | CNP |
| 5 | Solenoid Valve | FESTO |
| 6 | Cylinder | FESTO |
| 7 | Air Treatment Unit | FESTO |
| 8 | Pressure Regulator | FESTO |
| 9 | Inverter | Siemens |
| 10 | Power Supply | OMRON |
| 11 | Contactor | OMRON |
| 12 | Relay | OMRON |
| 13 | Photoelectric Sensor | Autonics |
| 14 | Proximity Switch | Autonics |
| 15 | PLC | Siemens |
| 16 | Touch Screen | WEINVIEW |
| 17 | Pneumatic Components | FESTO |
| 18 | AC Contactor | OMRON |
| 19 | Mini Relay | OMRON |

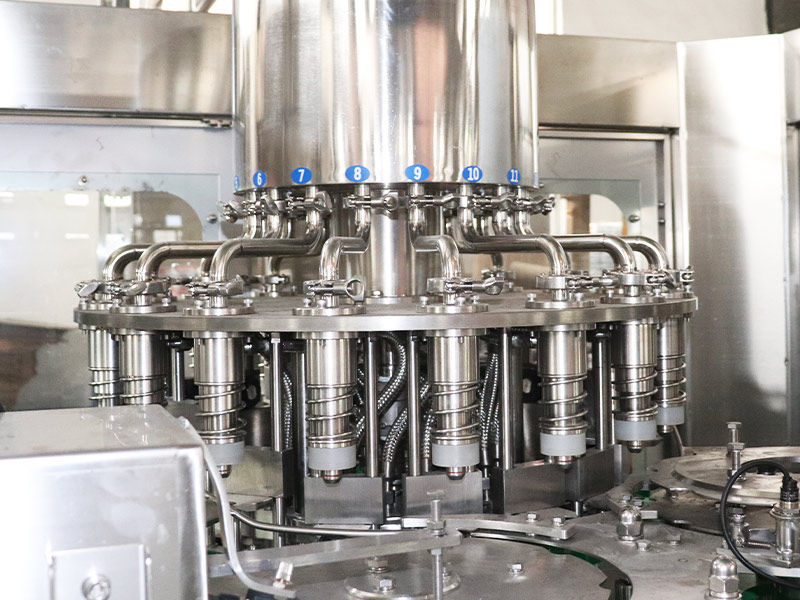

The machine uses a gravity filling method to accurately and steadily fill juice into PET bottles. The filling process is fast, the liquid level is consistent, and it can effectively reduce foaming and oxidation, thus preserving the taste and color of the juice.
● High filling accuracy with minimal error
● Drip-proof design reduces waste
● Suitable for juices of varying viscosities

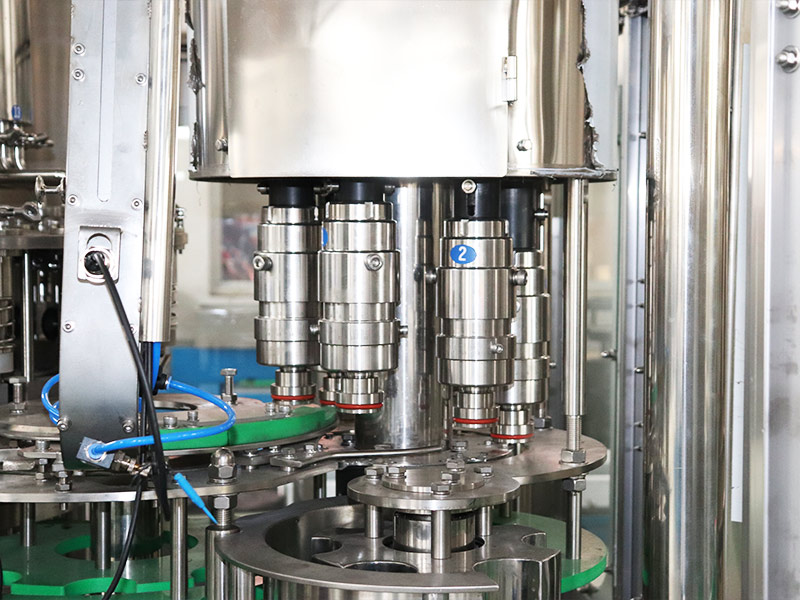

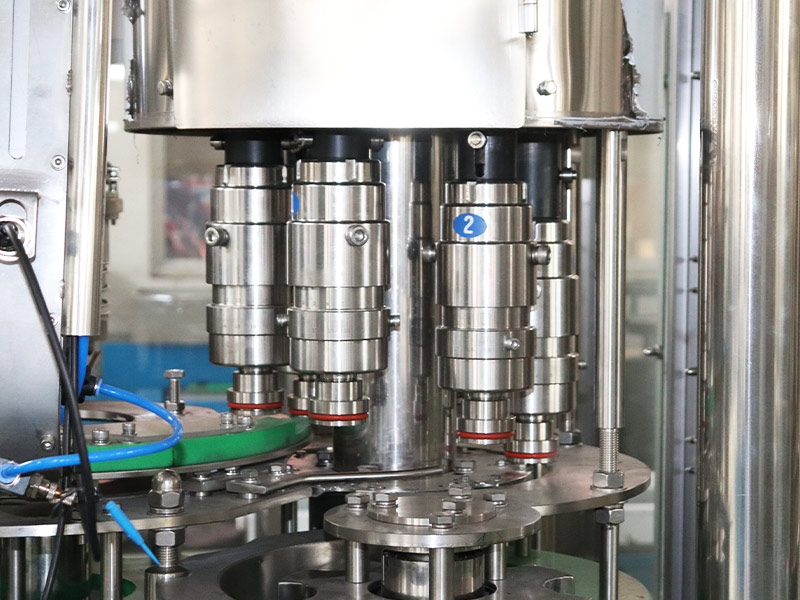

After filling, the machine automatically tightens and seals the bottle caps immediately. The capping torque is adjustable to ensure each bottle is securely and neatly sealed.
● Fast and stable capping speed
● Reliable, leak-proof sealing
● Quick cap replacement
