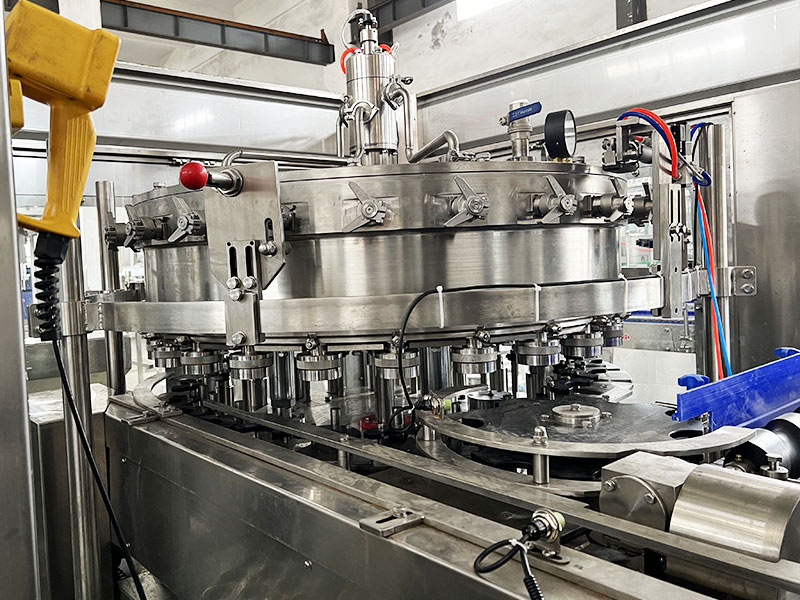

This isobaric can filling machine is specially designed for carbonated beverages such as soda, sparkling water, and beer. By using advanced equal-pressure filling technology, the machine maintains stable internal pressure during the filling process, preventing foam overflow and ensuring consistent fill levels.
Whether using aluminum, tinplate, or PET easy-open cans, we can provide complete solutions from single machines to fully automated bottling lines, supporting everything from small-to-medium capacity to high-speed, large-scale production.
For upstream beverage preparation before carbonated can filling, explore the 5-tank beverage mixing system.
Planning a carbonated can filling project? Contact our team with your can format, beverage, and line-layout requirements.
For a clearer carbonated can filling project discussion, please share your can format, closure, beverage, target output, and available line layout.
Isobaric Filling Technology
Maintains equal pressure inside the can to minimize foam and ensure accurate filling.
High-Speed Production
Designed for continuous production with reliable and consistent performance.
Stable & Reliable Performance
Provides tight sealing to prevent leakage and maintain internal pressure.
Hygienic Design
Meets food-grade standards for safe beverage production.
| Model | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
|---|---|---|---|---|---|---|
| Capacity (BPH) | 3000-4000 | 6000-9000 | 10000-12000 | 15000-18000 | 18000-20000 | 22000-24000 |
| Bottle Type | Various specifications of aluminum, tinplate, and PET easy-open cans | |||||
| Bottle Diameter (mm) | 50-90 | |||||
| Bottle Height (mm) | 150-310 | |||||
| Air Pressure (MPa) | 0.3-0.7 | |||||
| Rinsing Medium | Sterile Water | |||||
| Rinsing Pressure (MPa) | 0.25 | |||||
| Total Power (kW) | 3.0 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| Dimensions (mm) | 2100×1700×2250 | 2600×1830×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 | 4500×3300×2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 | 9000 |
| No. | Component | Brand |
|---|---|---|
| 1 | Main Motor | ABB |
| 2 | Cap Sorter Motor | ABB |
| 3 | Conveyor Motor | ABB |
| 4 | Rinsing Pump | CNP |
| 5 | Solenoid Valve | FESTO |
| 6 | Cylinder | FESTO |
| 7 | Air Treatment Unit | FESTO |
| 8 | Pressure Regulator | FESTO |
| 9 | Inverter | Siemens |
| 10 | Power Supply | OMRON |
| 11 | Contactor | OMRON |
| 12 | Relay | OMRON |
| 13 | Photoelectric Sensor | Autonics |
| 14 | Proximity Switch | Autonics |
| 15 | PLC | Siemens |
| 16 | Touch Screen | WEINVIEW |
| 17 | Pneumatic Components | FESTO |
| 18 | AC Contactor | OMRON |
| 19 | Mini Relay | OMRON |
Before filling, CO₂ gas is injected into the cans to remove oxygen and create a pressurized environment, which helps maintain carbonation and prevent product oxidation.
● Multi-stage gas injection design
● Stable CO₂ pressure control system
● Integrated with filling synchronization

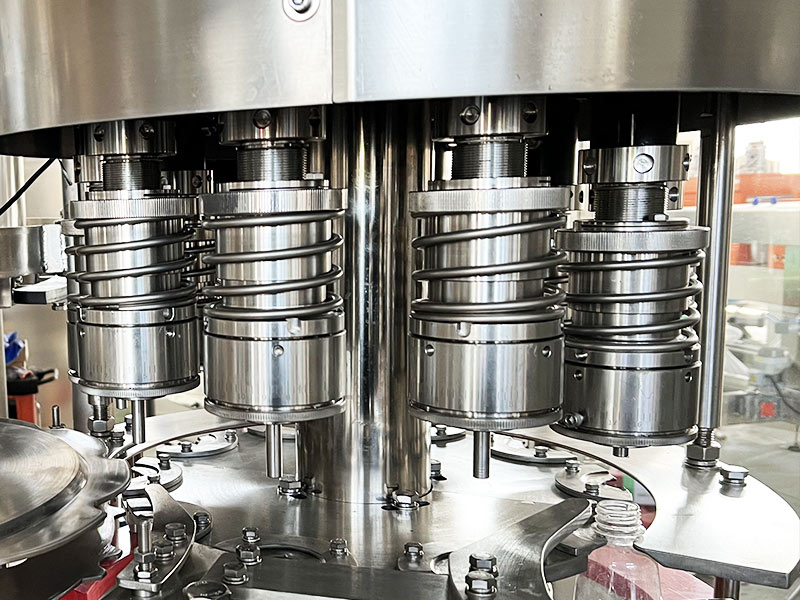

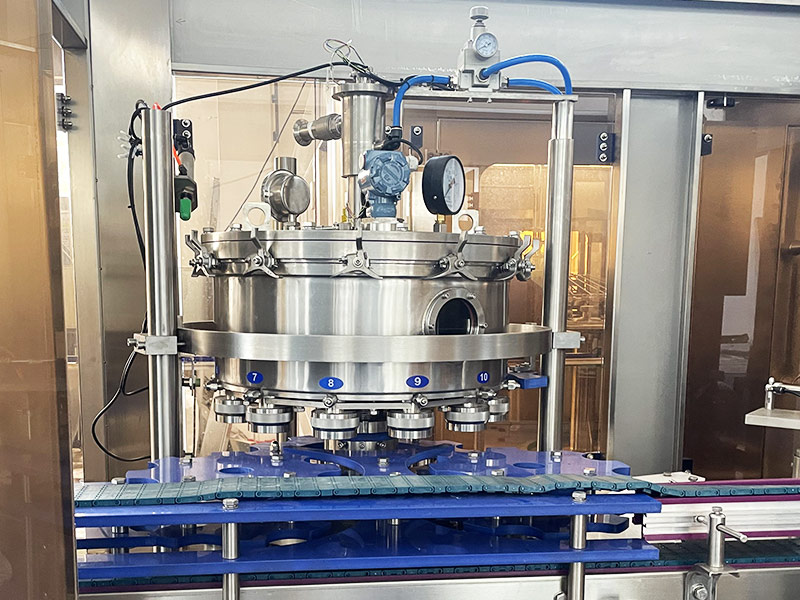

The machine fills liquid into cans under equal pressure conditions, ensuring smooth flow while reducing foam and maintaining consistent filling levels.
● High-precision isobaric filling valves
● Adjustable filling speed and flow rate
● Anti-foam filling structure design

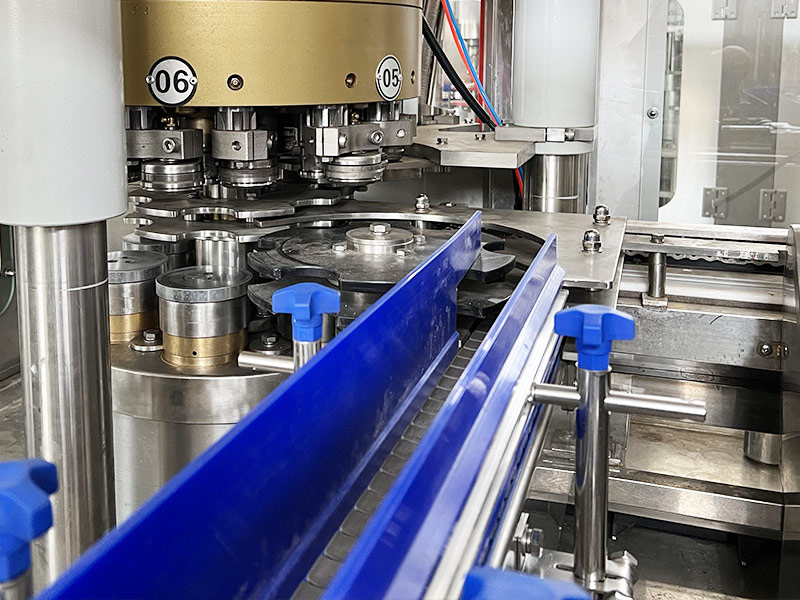

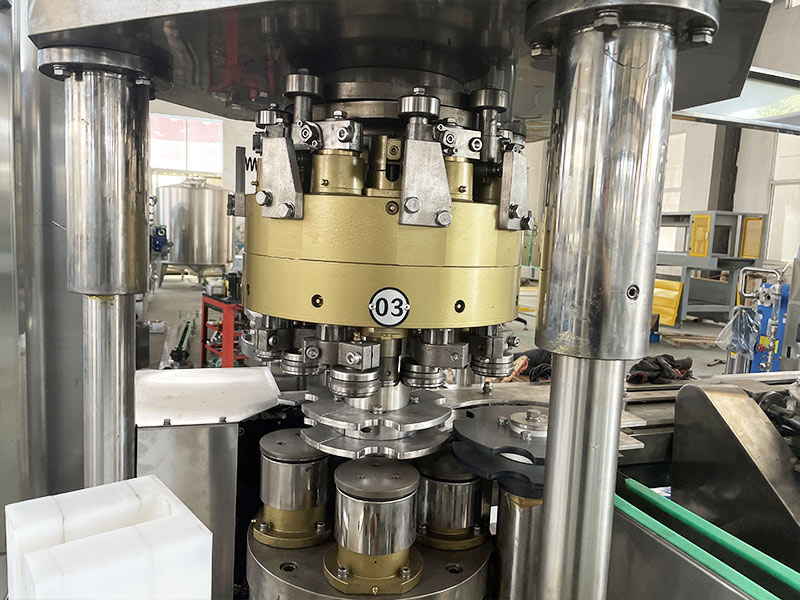

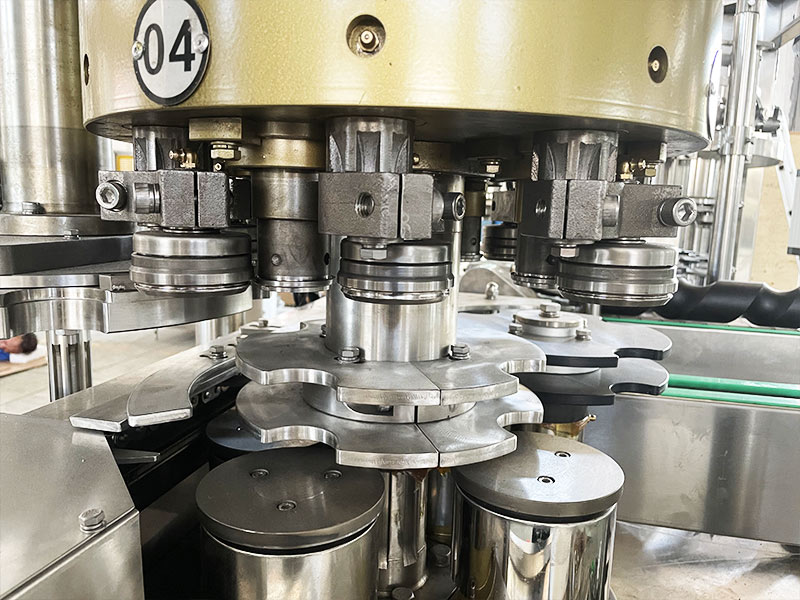

After filling, lids are applied and sealed tightly using precision rollers to ensure an airtight closure and prevent gas leakage.
● Double roller seaming structure
● High-strength sealing components
● Adjustable sealing pressure system

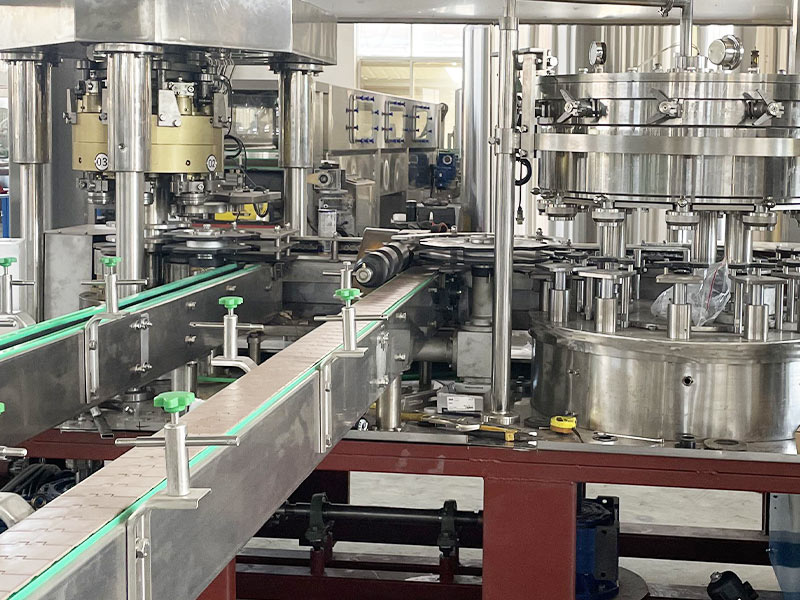

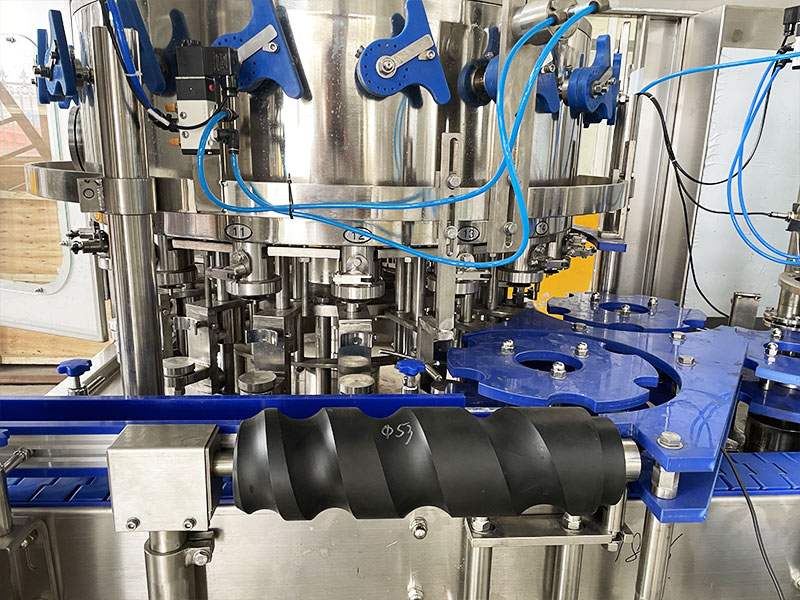

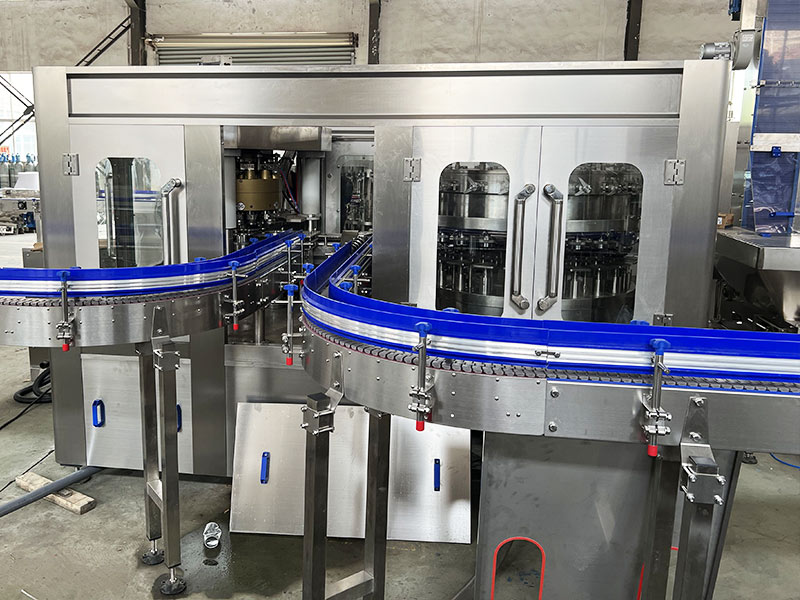

Filled cans are smoothly transported through the conveyor system to the next stage, ensuring continuous production and stable operation.
● Stainless steel conveyor structure
● Variable speed control system
● Modular and flexible layout design
