12-head Aluminum Juice Filling Machine
12-head Aluminum Juice Filling Machine This is a machine specifically designed for filling aluminum-plated fruit juice beverages, featuring a total of 12 filling heads. It
This is a specialized machine for hot-filling glass-bottled fruit juice, suitable for producing various juices such as mango, strawberry, blueberry, apple, and orange.
The machine integrates cleaning, filling, and capping functions, featuring a simple structure and easy operation.
It can perform 95℃ high-temperature hot filling, offering fast filling speed, high precision, excellent sealing, minimal material waste, and effectively preventing secondary contamination.
Three-in-one integrated design
Bottle washing, filling, and capping are completed in one step, saving space and manpower.
High-precision filling
Gravity-driven atmospheric pressure filling ensures precise level control with minimal error.
Optimized for glass bottles
Soft-grip bottle technology minimizes bottle breakage.
Hygiene and safety
Made entirely of 304/316L stainless steel, with a CIP online cleaning system, meeting food hygiene standards.
| Model | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
|---|---|---|---|---|---|---|
| Capacity (BPH) | 3000-4000 | 6000-9000 | 10000-12000 | 15000-18000 | 18000-20000 | 22000-24000 |
| Bottle Type | Various glass bottles including 250ml, 330ml, 500ml, 750ml, and 1000ml. | |||||
| Bottle Diameter (mm) | 50-90 | |||||
| Bottle Height (mm) | 150-310 | |||||
| Air Pressure (MPa) | 0.3-0.7 | |||||
| Rinsing Medium | Sterile Water | |||||
| Rinsing Pressure (MPa) | 0.25 | |||||
| Total Power (kW) | 3.0 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| Dimensions (mm) | 2100×1700×2250 | 2600×1830×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 | 4500×3300×2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 | 9000 |
| No. | Component | Brand |
|---|---|---|
| 1 | Main Motor | ABB |
| 2 | Cap Sorter Motor | ABB |
| 3 | Conveyor Motor | ABB |
| 4 | Rinsing Pump | CNP |
| 5 | Solenoid Valve | FESTO |
| 6 | Cylinder | FESTO |
| 7 | Air Treatment Unit | FESTO |
| 8 | Pressure Regulator | FESTO |
| 9 | Inverter | Siemens |
| 10 | Power Supply | OMRON |
| 11 | Contactor | OMRON |
| 12 | Relay | OMRON |
| 13 | Photoelectric Sensor | Autonics |
| 14 | Proximity Switch | Autonics |
| 15 | PLC | Siemens |
| 16 | Touch Screen | WEINVIEW |
| 17 | Pneumatic Components | FESTO |
| 18 | AC Contactor | OMRON |
| 19 | Mini Relay | OMRON |

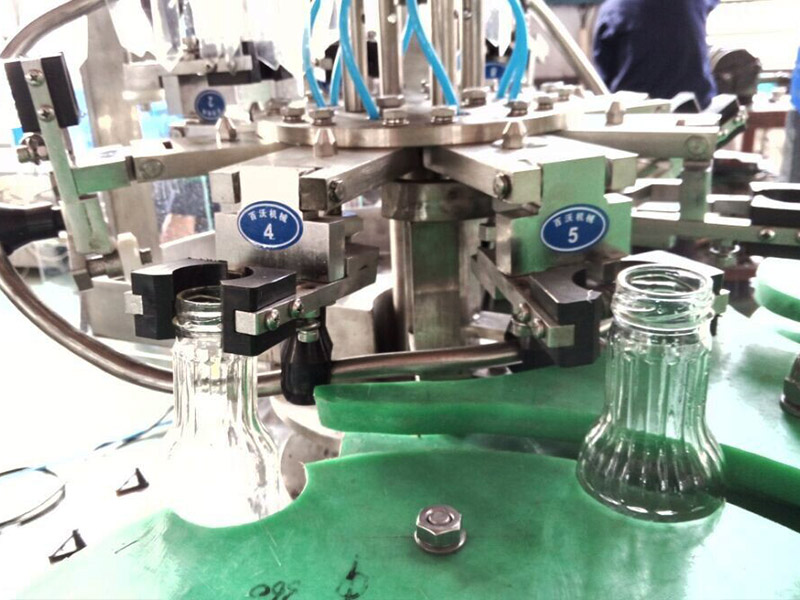

High-pressure rotary internal and external washing system thoroughly cleans the glass bottles to remove dust, residues, and microorganisms, ensuring perfect cleanliness before filling.
● Multi-angle high-pressure spray nozzles
● Rotary washing technology for complete internal cleaning
● Optional hot alkaline + pure water double rinsing

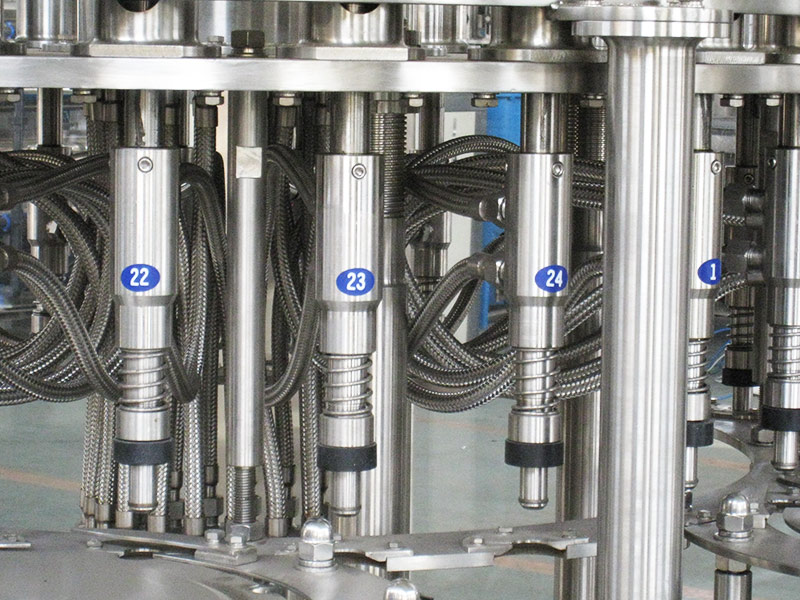

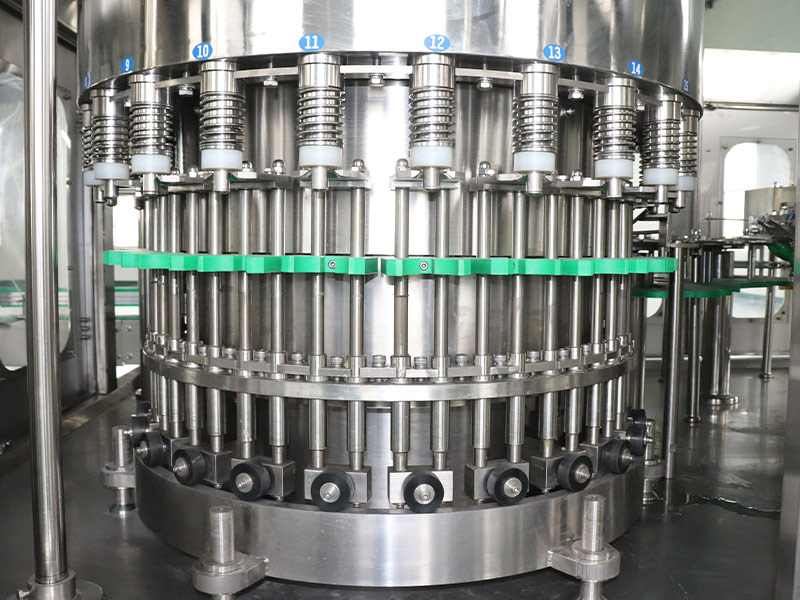

The machine uses gravity filling technology to fill liquid into glass bottles under atmospheric pressure, ensuring gentle, stable, and precise filling with minimal foam and oxidation.
● High-precision gravity filling valves
● Adjustable filling speed and flow rate
● Anti-foam and anti-drip design

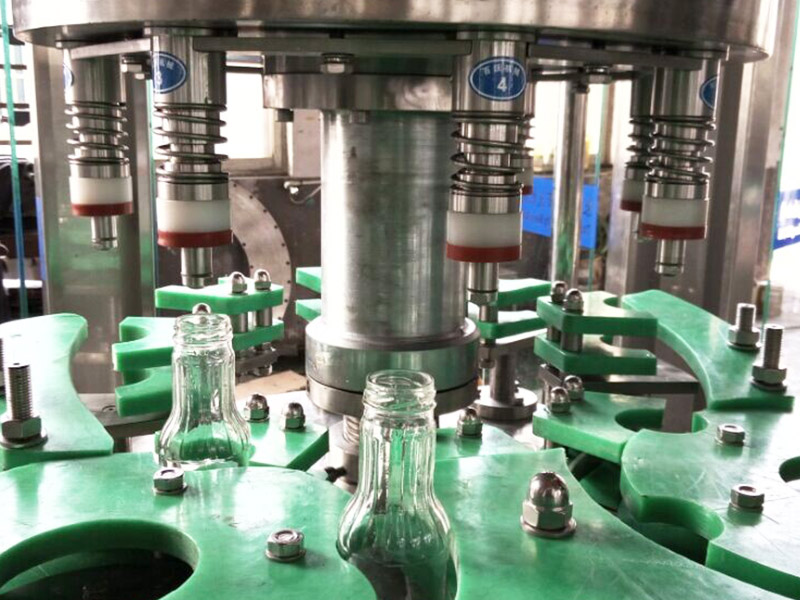

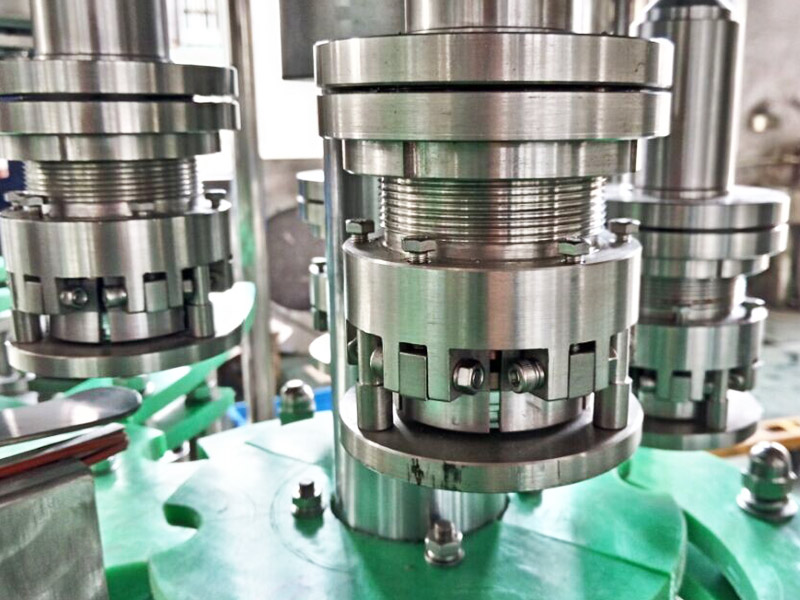

Automatic high-speed capping system securely applies and tightens caps on the filled glass bottles with precise torque control.
● High-precision automatic capping heads
● Adjustable capping torque for perfect seal
● Gentle bottle handling system to reduce breakage risk
