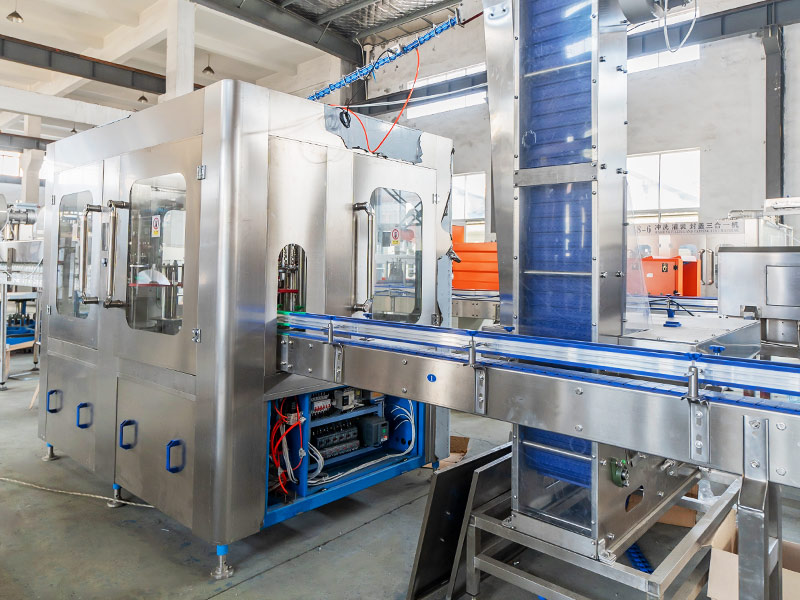

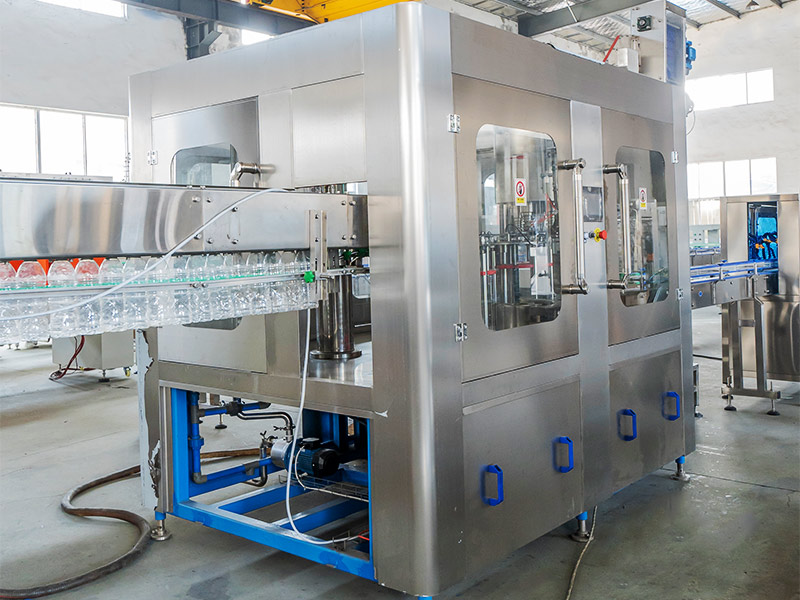

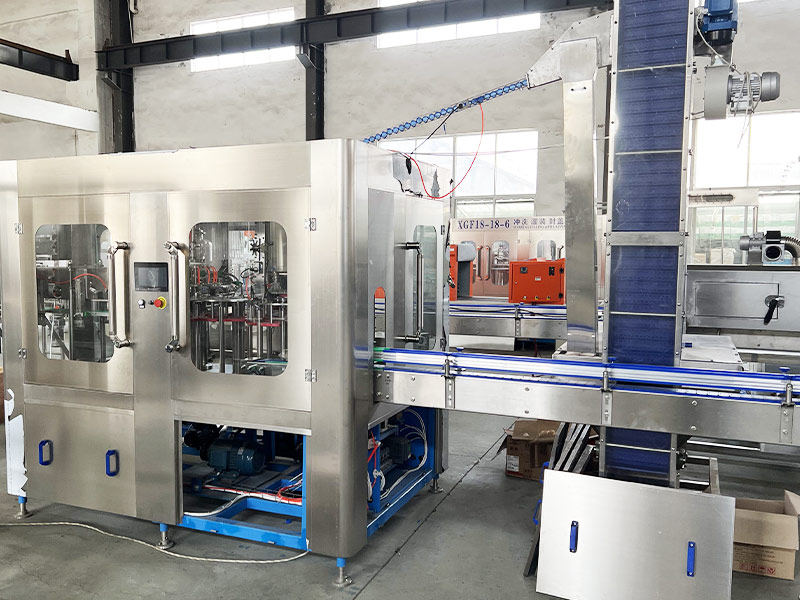

The XGF18-18-6 12-head 3-in-1 water filling machine is a compact system that integrates bottle rinsing, filling, and capping into a single unit, designed to streamline bottled water production and reduce manual handling.
It is particularly suitable for small to medium-sized production lines that require stable performance, hygienic operation, and efficient output. With its integrated structure and reliable control system, the machine helps manufacturers improve productivity while maintaining consistent product quality.
Planning a bottled water project? Contact our team with your bottle format and project requirements.
Integrated 3-in-1 Design
Combines washing, filling, and capping in one system, reducing footprint and simplifying production flow.
Stable & Precise Filling Performance
Ensures consistent filling volume with minimal deviation, helping reduce waste and maintain quality.
Durable Stainless Steel Structure
Constructed with high-grade materials for long-term operation in demanding production environments.
Engineering Support & After-Sales Service
From installation to operator training, we provide full technical support to ensure smooth operation.
| Model | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 |
|---|---|---|---|---|---|---|
| Capacity (BPH) | 3000-4000 | 6000-9000 | 10000-12000 | 15000-18000 | 18000-20000 | 22000-24000 |
| Bottle Type | PET Round or Square Bottles | |||||
| Bottle Diameter (mm) | 50-90 | |||||
| Bottle Height (mm) | 150-310 | |||||
| Air Pressure (MPa) | 0.3-0.7 | |||||
| Rinsing Medium | Sterile Water | |||||
| Rinsing Pressure (MPa) | 0.25 | |||||
| Total Power (kW) | 3.0 | 4.4 | 5.2 | 6.2 | 7.8 | 10 |
| Dimensions (mm) | 2100×1700×2250 | 2600×1830×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 | 4500×3300×2350 |
| Weight (kg) | 2200 | 2500 | 4200 | 6000 | 7000 | 9000 |
| No. | Component | Brand |
|---|---|---|
| 1 | Main Motor | ABB |
| 2 | Cap Sorter Motor | ABB |
| 3 | Conveyor Motor | ABB |
| 4 | Rinsing Pump | CNP |
| 5 | Solenoid Valve | FESTO |
| 6 | Cylinder | FESTO |
| 7 | Air Treatment Unit | FESTO |
| 8 | Pressure Regulator | FESTO |
| 9 | Inverter | Siemens |
| 10 | Power Supply | OMRON |
| 11 | Contactor | OMRON |
| 12 | Relay | OMRON |
| 13 | Photoelectric Sensor | Autonics |
| 14 | Proximity Switch | Autonics |
| 15 | PLC | Siemens |
| 16 | Touch Screen | WEINVIEW |
| 17 | Pneumatic Components | FESTO |
| 18 | AC Contactor | OMRON |
| 19 | Mini Relay | OMRON |

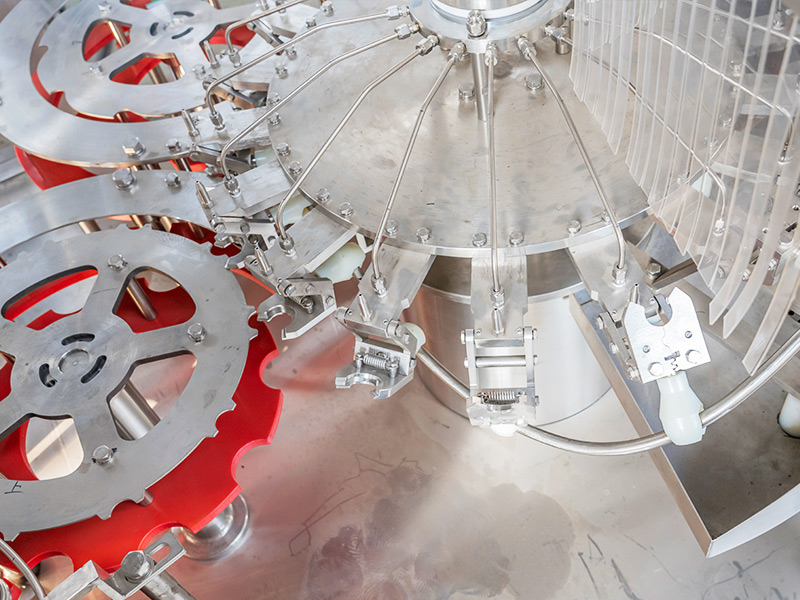

Bottles are conveyed into the rinsing section, where they are gripped, inverted, and cleaned using sterile water to remove dust and impurities before filling.
● All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
● 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
● 304/316 stainless steel washing pump

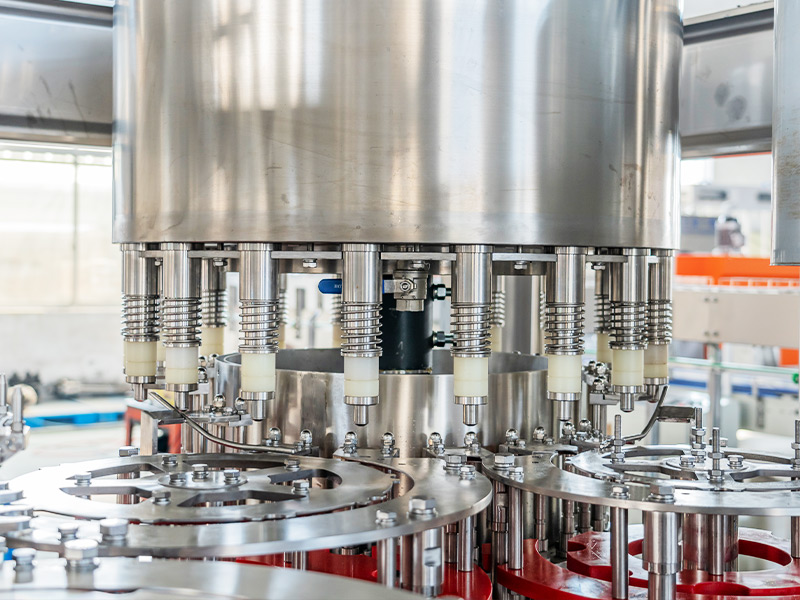

Bottles are transferred to the filling station, where liquid is filled with controlled flow and accurate volume to maintain consistent levels and reduce waste.
● 304/316 Stainless steel high precision filling nozzle
● Filling volume adjustable in fine rank, same liquid level after filling
● All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
● 304/316 stainless steel filling pump

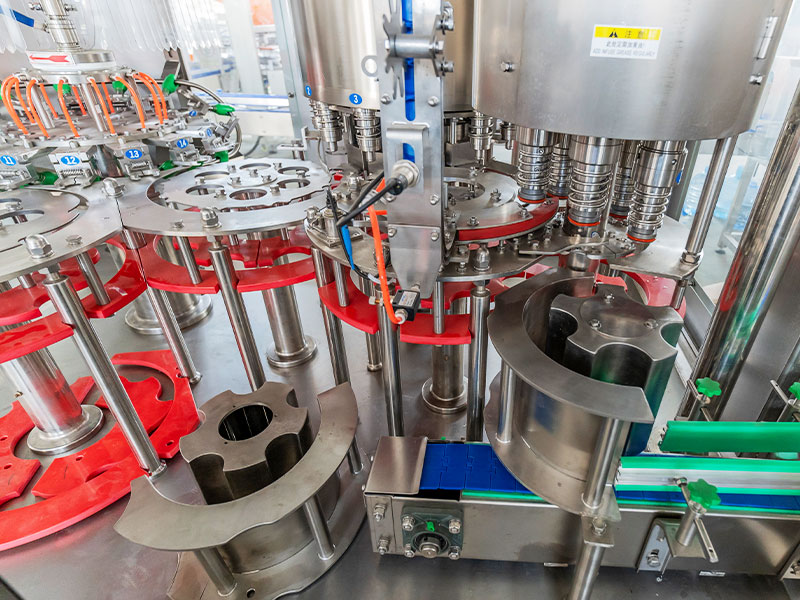

Caps are automatically sorted and applied with controlled torque to ensure a secure seal without damaging the bottle or cap.
● Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
● All 304/316 stainless steel construction
● No bottle no capping
● Automatic stop when lack of bottle
